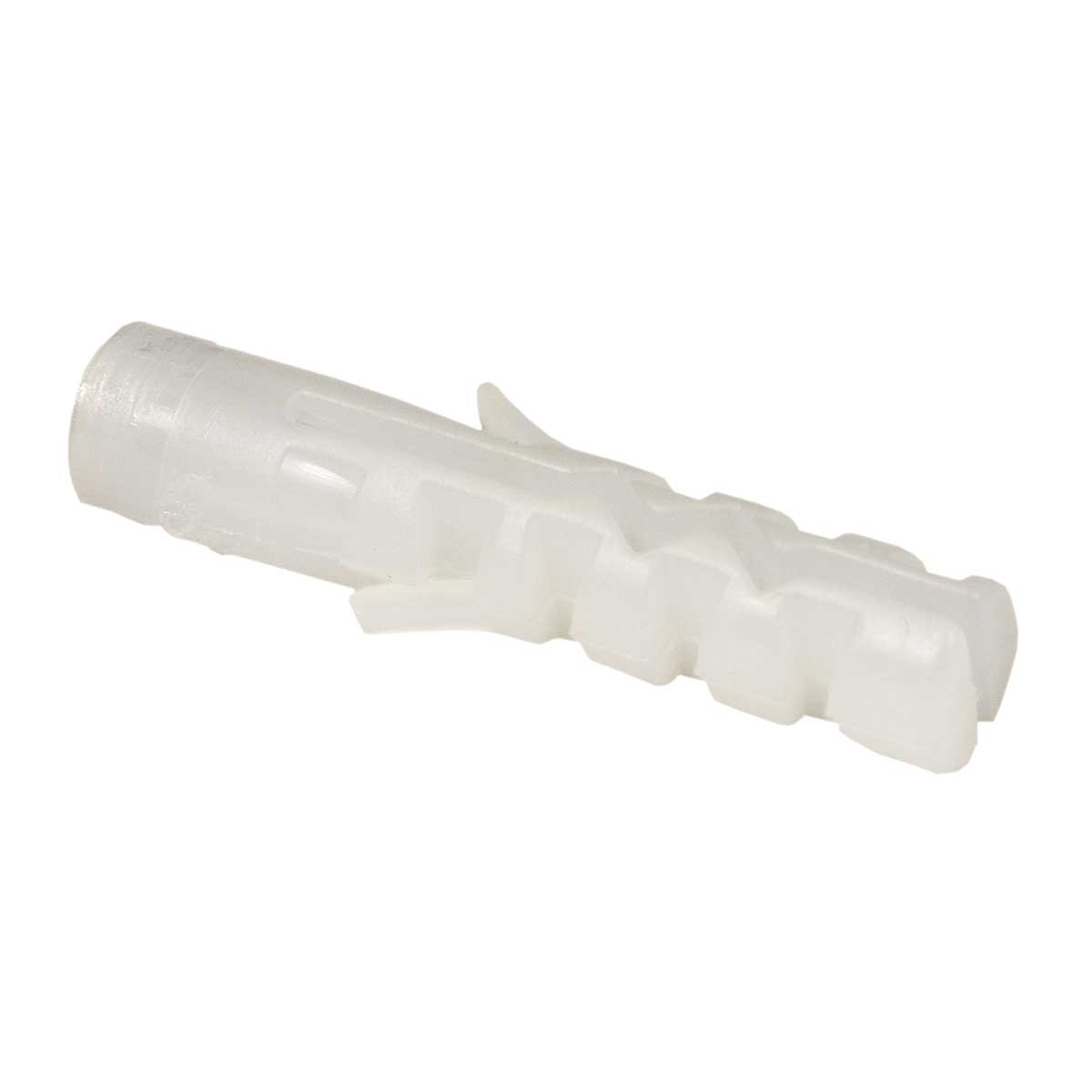

illustrative picture
HM 12 XX - hmoždinka
To access download of 3D models login or register.
Karta katalogowa
Kod EAN8595057605190
Kod klasyfikacji celnej39259080
Materiał bezhalogenowyyes
Odporność na temperaturę-30 - 80 °C
Naprężenie osiowe
concrete 20/25 = 2150 N brick = 1250 N soft material = 850 N gas-cilicate = 390 N
Długość60 mm
Średnica zewnętrzna12 mm
Średnica śruby6 - 8 mm
Zalecenia producenta
dowels should be installed immediately after unpacking from a sealed bag. This will avoid unnecessary lowering of the PA moisture level, which would result in a reduction in the quality of the dowel
Głębokość wiercenia65 mm

For fixed mounting of wiring and other elements into hollow walls and ceilings. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
