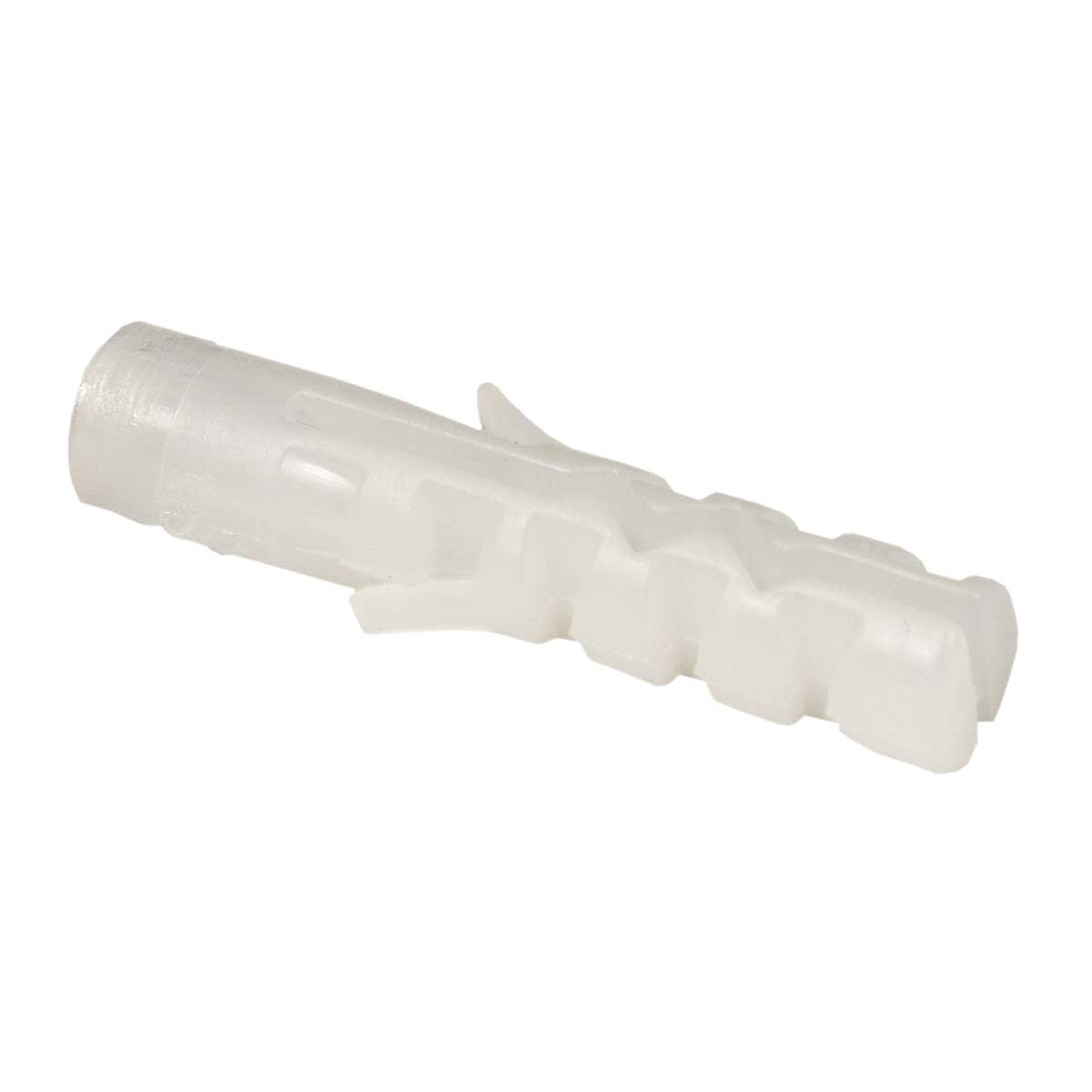

illustrative picture
HM 6 XX - hmoždinka
HM 6 XX - hmoždinka
Datový list
Certifikace
EAN code8595057605213
Kod klasyfikacji celnej39259080
MateriałPA
Materiał bezhalogenowyyes
Odporność na temperaturę, zakres stosowania-30 - 80 °C
Naprężenie osiowegas-cilicate = 100 N
Długość30 mm
Średnica zewnętrzna6 mm
Średnica śruby3,5 - 4 mm
Zalecenia producenta
dowels should be installed immediately after unpacking from a sealed bag. This will avoid unnecessary lowering of the PA moisture level, which would result in a reduction in the quality of the dowel
Głębokość wiercenia35 mm
For fixed mounting of wiring and other elements into hollow walls and ceilings. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
