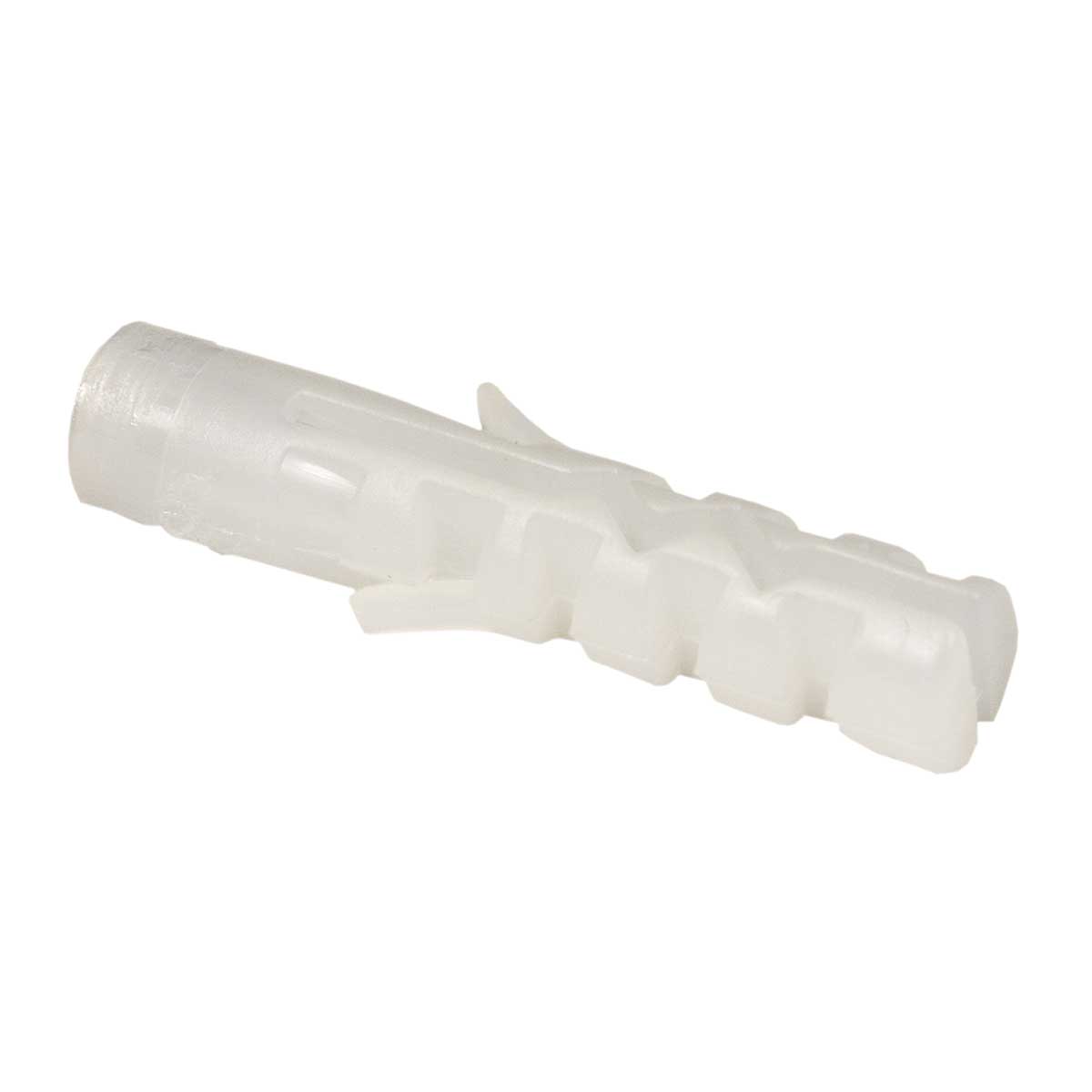

HM 8/1 XX - hmoždinka
Karta katalogowa
Kod EAN8595057605251
Kod klasyfikacji celnej39259080
Materiał bezhalogenowyyes
Odporność na temperaturę-30 - 80 °C
Naprężenie osiowe
concrete 20/25 = 700 N brick = 690 N soft material = 500 N gas-cilicate = 120 N
Długość40 mm
Średnica zewnętrzna8 mm
Średnica śruby4 - 5 mm
Zalecenia producenta
dowels should be installed immediately after unpacking from a sealed bag. This will avoid unnecessary lowering of the PA moisture level, which would result in a reduction in the quality of the dowel
Głębokość wiercenia45 mm

For fixed mounting of wiring and other elements into hollow walls and ceilings. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
