Kod EAN8595568930835
Kod klasyfikacji celnej85363030
Waga0.03 kg/pcs
MateriałPVC
Materiał bezołowiowyyes
Samogasnący30 sec.
Napięcie znamionowe<= 400 V
Prąd znamionowy<= 16 A
Odporność na temperaturę-5 - 60 °C
Test rozżażonej pętli850 °C

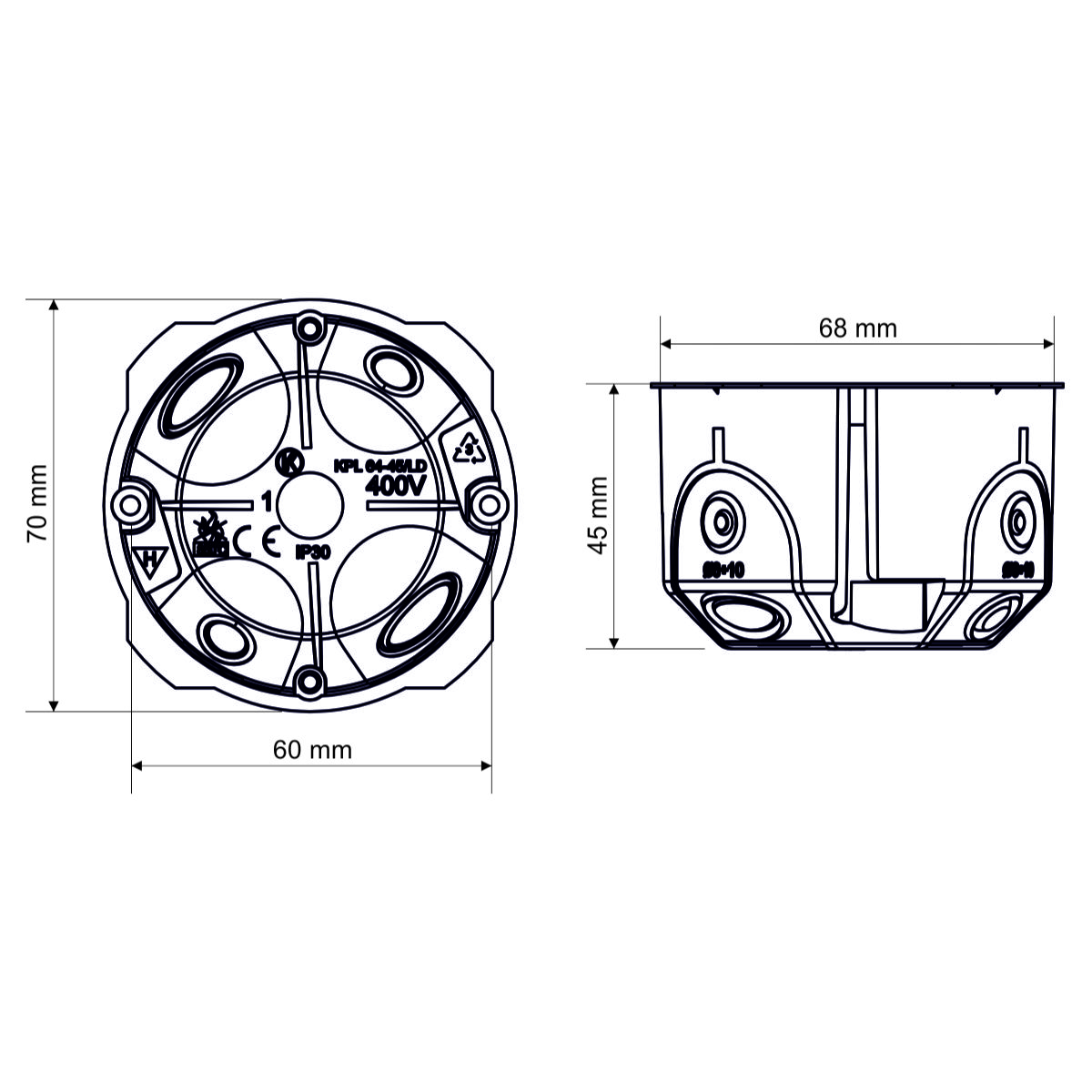

Szerokość70 mm
Wysokość68 mm
Głębokość45 mm
Średnica otworów frezowanych (wierconych)68 mm
Zalecenia producenta
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Klasa reakcji na ogieńA1 - F
Stopień zabezpieczeniaIP30
NormyČSN EN 60 670-1
Opis opakowania
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

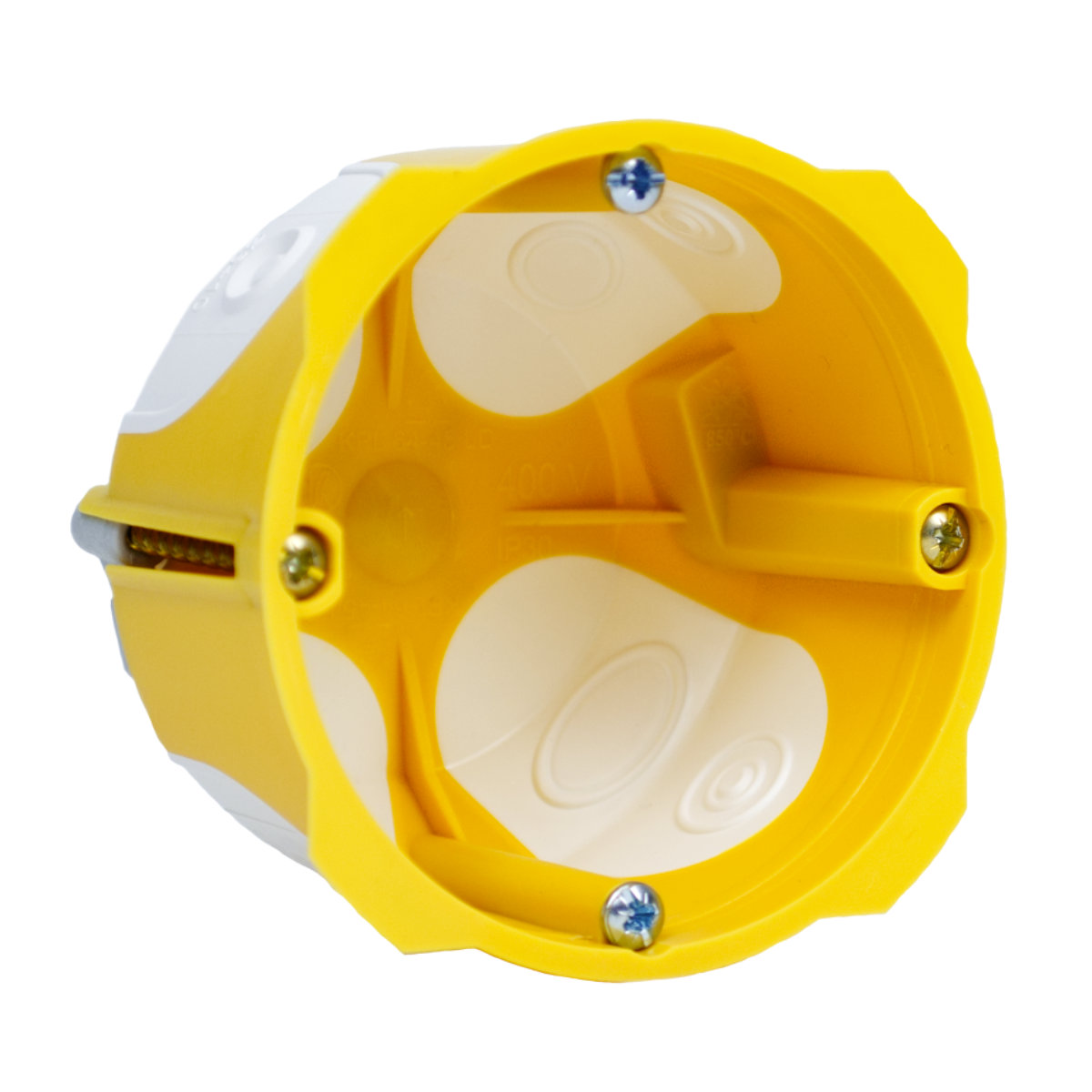

Inlet openings made of flexible material. The cable or tube installation is performed by extracting the pre-pressed inlet to the flexible membranes and then inserting the required item into the opening. Installation box in the hole is made by tightening mounting screws. Air proofed even with inserted cable or pipe. Suitable for low energy and passive houses. The fixing screws as well as the instrument screws are double-threaded for quick installation; the box has plastic flanges. When mounting, it is not necessary to countersink the plasterboard edge. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection.
