Kod EAN8595568931948
Kod klasyfikacji celnej85363030
Waga0.13 kg/pcs
MateriałPVC
Materiał bezołowiowyyes
Samogasnący30 sec.
Napięcie znamionowe<= 400 V
Prąd znamionowy<= 16 A
Odporność na temperaturę-5 - 60 °C
Test rozżażonej pętli850 °C

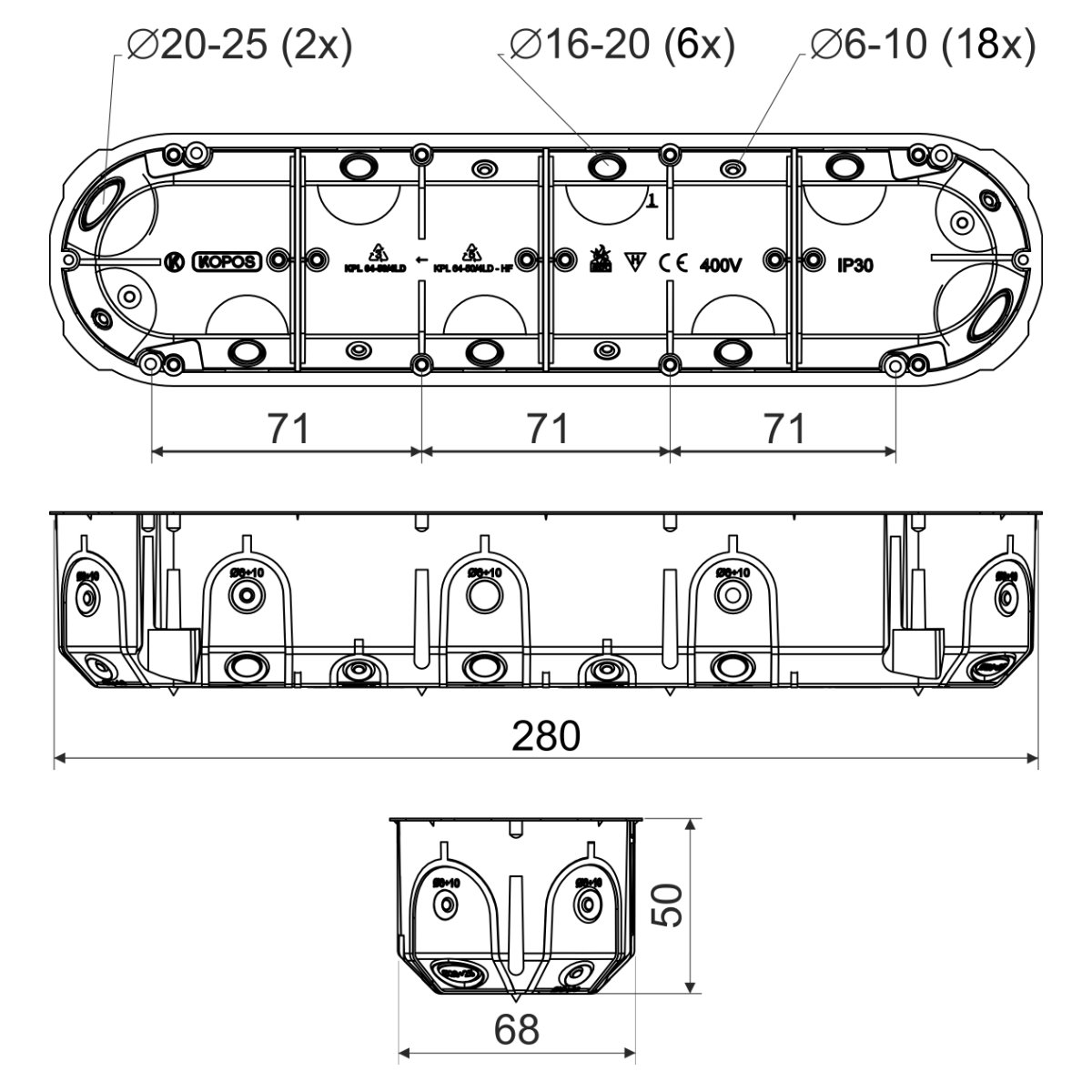

Szerokość280 mm
Wysokość68 mm
Głębokość50 mm
Średnica otworów frezowanych (wierconych)68 mm
Zalecenia producenta
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Klasa reakcji na ogieńA1 - F
Odstępy przy łączeniu dwóch puszek71
NormyČSN EN 60 670-1
Opis opakowania
boxes fitted with screws for installation in plasterboard and instrument screws, boxes placed freely in the cardboard

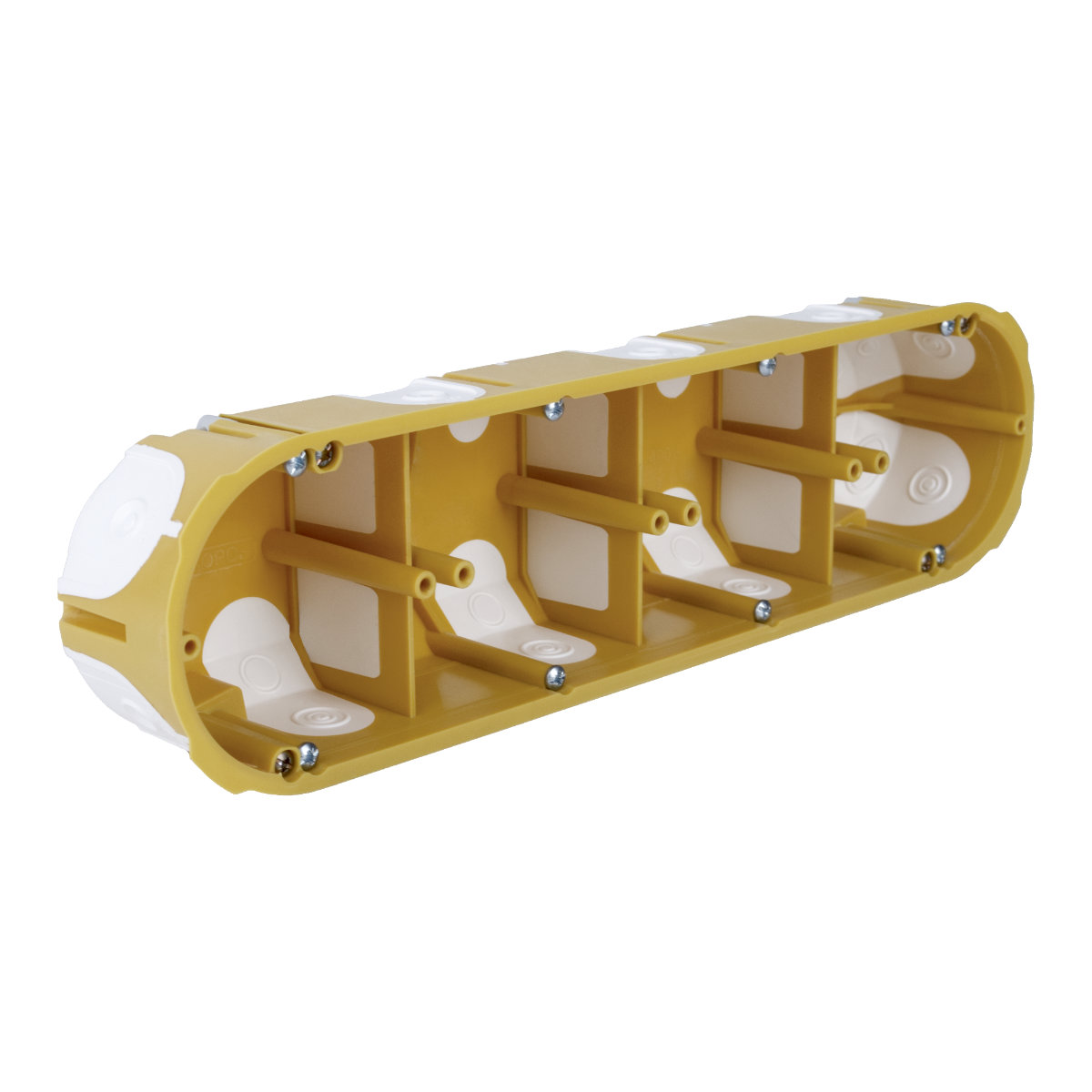

For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low energy and passive houses. Four tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. Protected by European industrial design. The IP30 protection a box fitted with an instrument with protection a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.
