illustrative picture

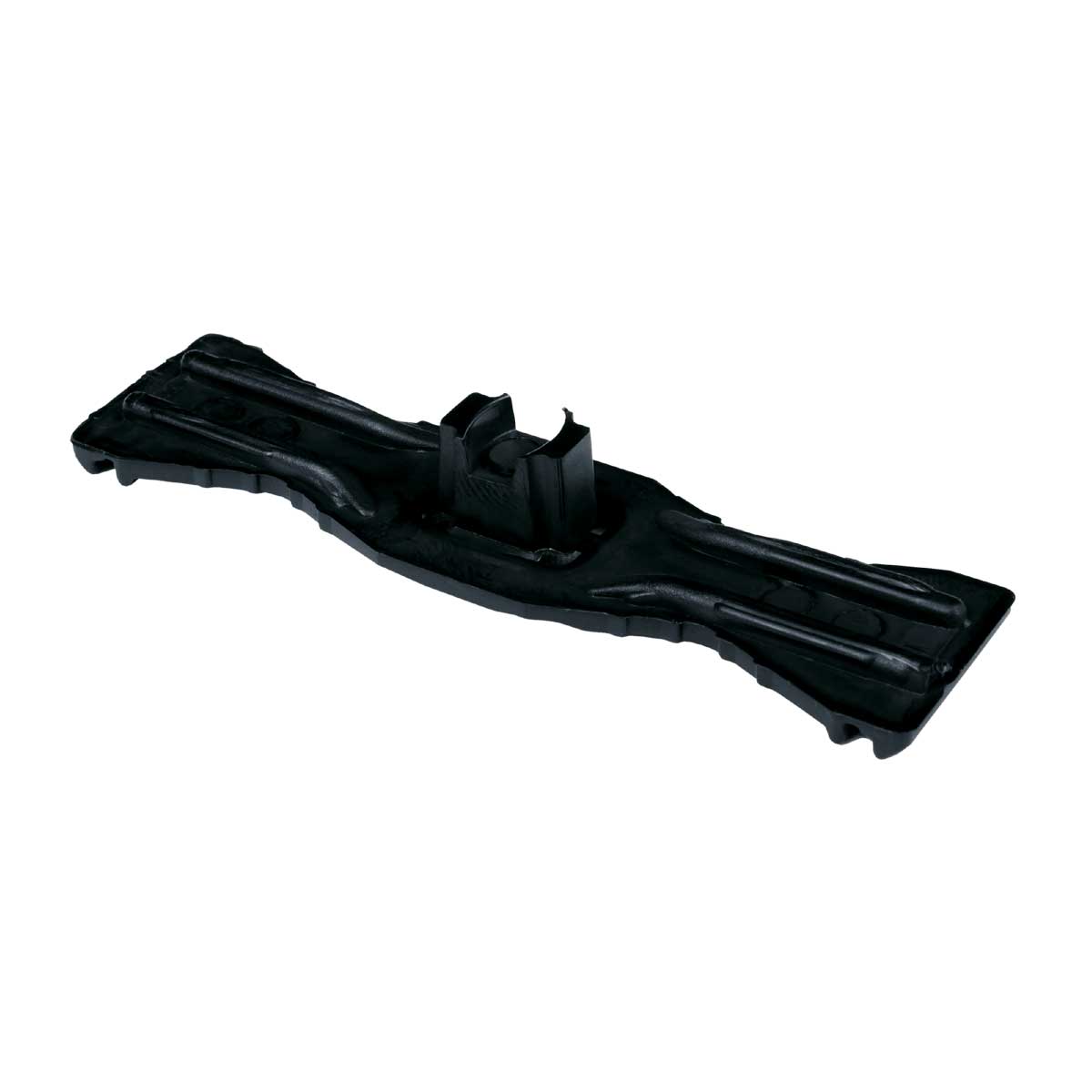

6723 FA - příchytka řadová
6723 FA - příchytka řadová
způsob montáže
EAN code8595057606227
Kod klasyfikacji celnej39174000
MateriałPA
Materiał bezhalogenowyyes
Odporność na temperaturę, zakres stosowania-30 - 80 °C
Szerokość15 mm
Wysokość11,5 mm
Długość70 mm
Średnica przewodów10 - 26 mm
Zalecenia producenta
The clamps should be installed immediately after unpacking from the sealed bag.

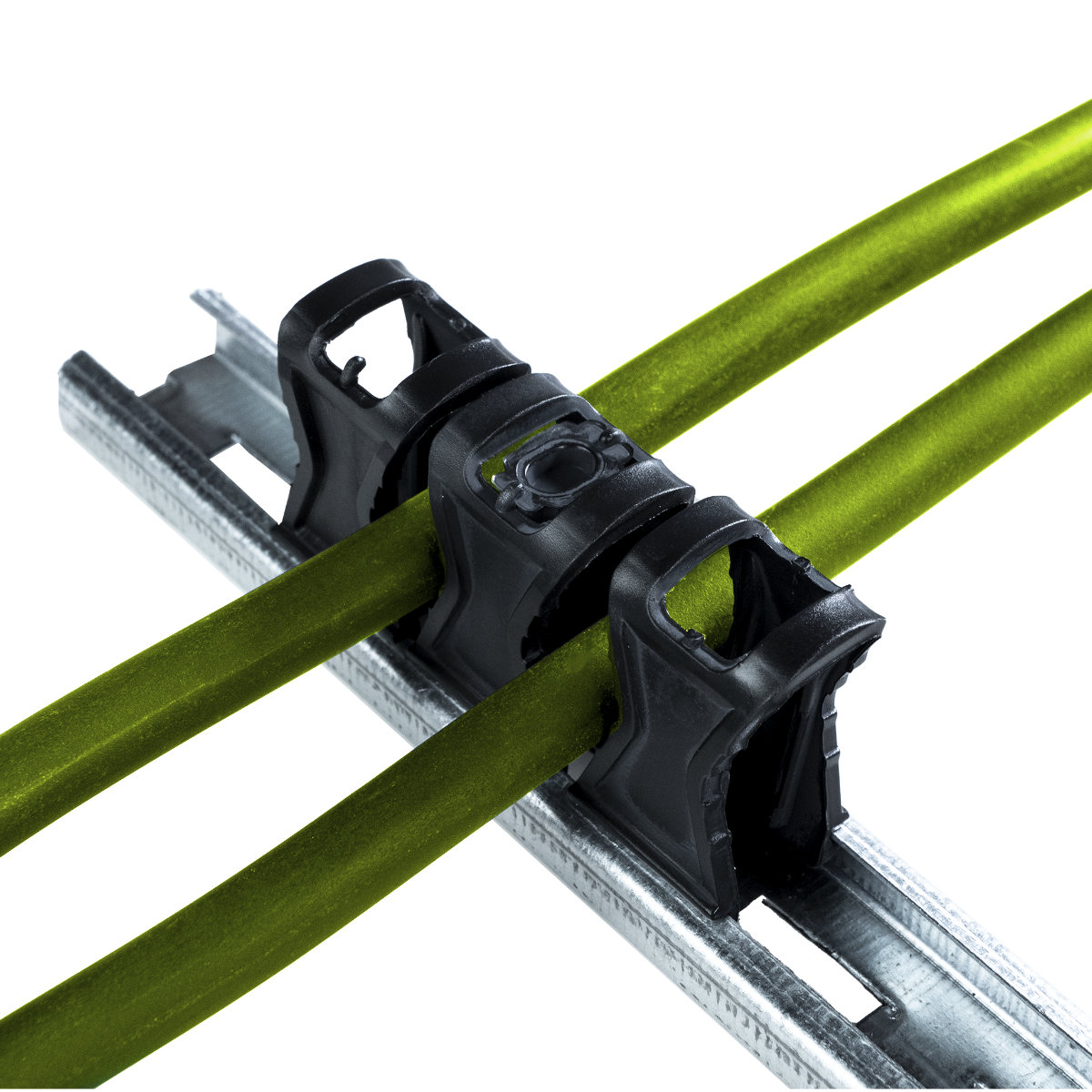

To fix the protected conductors with ?10-26 mm side by side on the support trunking 5820 or 5822. Installation is done by bending the clips into a U-shape and inserting into the support trunking. Is secured against displacement with a wedge, which is pre-moulded on the clip.
