Kod EAN8595568940810
Kod klasyfikacji celnej83024190
Waga0,2253 kg/pcs
Wykończenie powierzchniMagnelis®
Maksymalne obciążenie150 kg
Wymiar A220 mm
Wymiar B64 mm
Dla szerokości koryta kablowego200 mm
Dla wysokości koryta35 - 110 mm

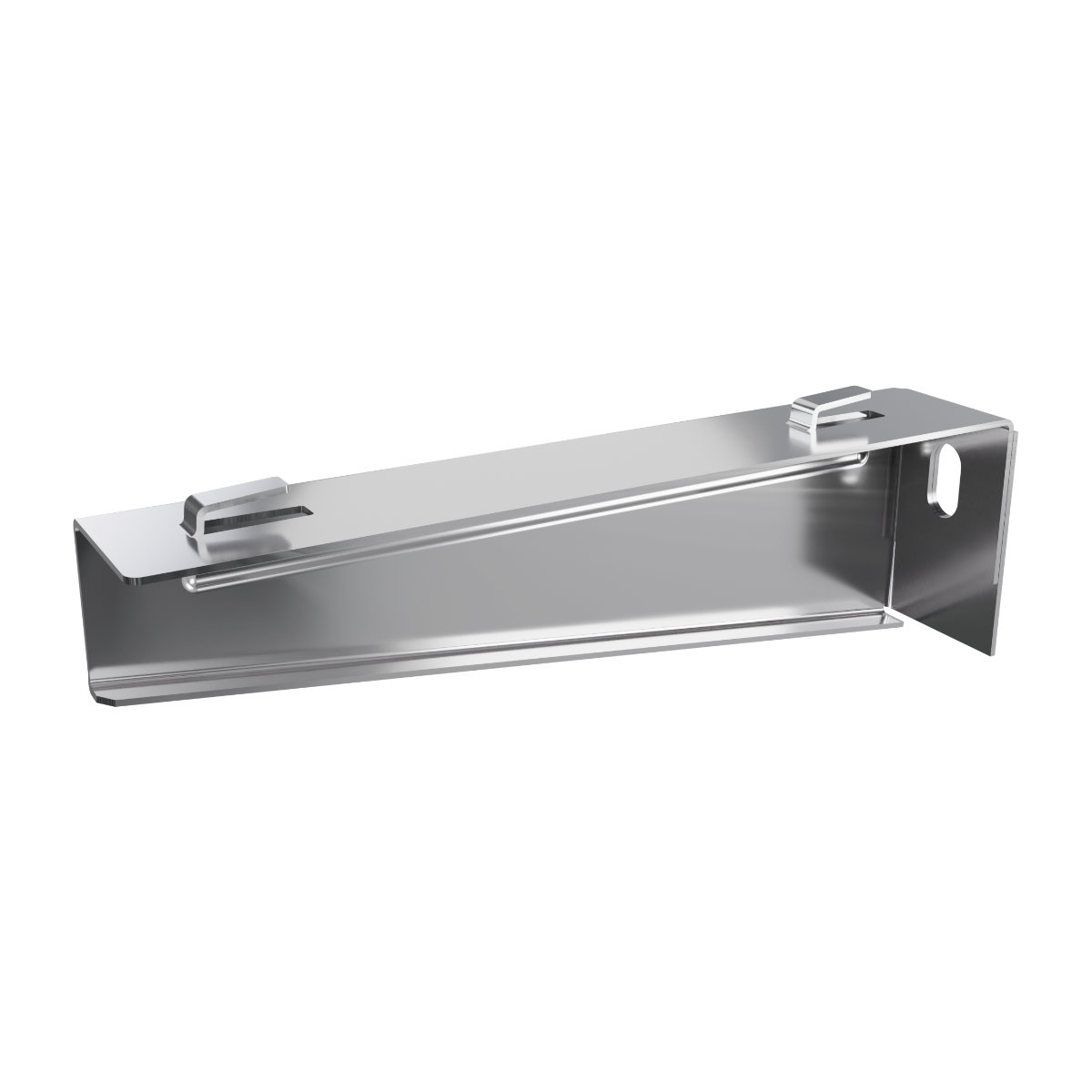

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 (2 pcs) are used. By bending the fixing protrusions, we ensure a quick and reliable fixation of the wire tray trough to the support. The bracket DSDZ 150_ZM is not suitable for the wire tray DZI 110X150. For the DZI 110X150 wire tray, it is possible to use the bracket DS 150_ZM and fix the tray to the bracket using the DZSU fastening screw. To attach the DZI 60X60 tray to the wall, it is recommended to use the DZZ hinge.
