EAN code8595057603349
Kod klasyfikacji celnej85363030
Waga0.31 kg/pcs
Kolordark grey
MateriałPVC
Samogasnący30 sec.
Napięcie znamionowe<= 400 V
Prąd znamionowy<= 16 A
Odporność na temperaturę-5 - 60 °C
Test rozżażonej pętli650 °C

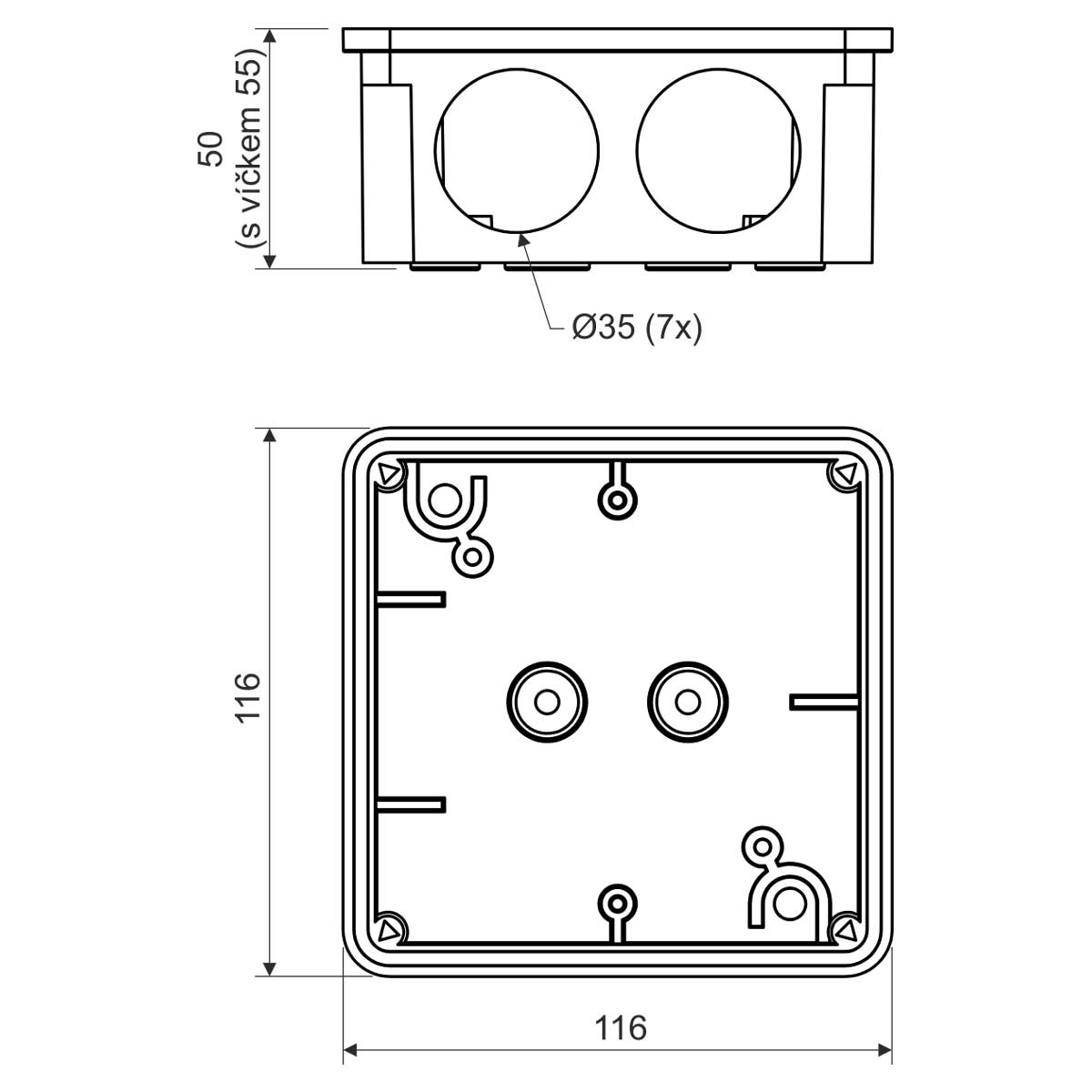

Szerokość117 mm
Wysokość117 mm
Głębokość58 mm
Klasa reakcji na ogieńA1 - D
Rozšířená reakce na oheň podkladového materiálu
Combined with a 5 mm thermal insulating, non-flammable pad, assembly on building materials can be carried out without restriction of the reaction to fire class A1 - F
Stopień zabezpieczeniaIP 54
NormyČSN EN 60 670-1
Opis opakowania
the grommets and screws for mounting lid inserted in the box, each box is packed in a shrink foil and labeled

For installation in environment with increased humidity, dust, chemical and corrosion resistance in environments with increased risk of mechanical damage. Universal grommets for cables and pipes, grommets can be ordered separately. To install on materials with fire classes E or F, use thermally insulating pad. Modification of this box is also available as Fire Resistant, see Systems with maintained functionality in fire catalog.
